Canon Xephilio OCT-A1
Original price was: $25,999.00.$15,999.00Current price is: $15,999.00.-38% OFF
Canon Xephilio OCT-A1 optical coherence tomography uses advanced Deep Learning technology to effectively eliminate noise and improve detail in a single scan.
In stock
Description
Xephilio OCT-A1 achieves both high-speed OCTA image generation and high image quality by using image processing technology using deep learning technology and a high-performance GPU (image processing semiconductor). Under the new brand name “Xephilio”, it will be widely deployed in ophthalmic medical institutions.
The Canon OCT A1, due to its innovative features, allows you to capture easy and fast with an incredible level of detail, fully automated with only 3 clicks. It is easy to use for all types of users thanks to its fully customizable settings Ultra high definition OCT images. For greater precision, up to 200 images are taken into account to deliver the best possible definition in each measurement, and thus the structure of the retinal layers can be observed with the highest level of detail.
Xephilio OCT A1 features are:
- In a single scan, it offers images with minimized noise and a high level of detail, allowing a comfortable examination for the patient.
- It has the excellence of Canon optics that offers an image with a high resolution of 1.6um and a high scanning speed of 70,000 a-scans/s in 2 seconds.
- Intelligent functions that allow automated exams.
- Flexible information possibilities, extensive normative databases: It has extensive DICOM and EMR capability
- Anterior segment analysis: Available with the ASA-1 adapter that allows quick and easy quantification of standard parameters.
- OCT angiography: OCT angiography is a sophisticated technology that detects the movement of red blood cells in the retinal vasculature and allows the entire vascular network to be visualized in detail.
Improved OCTA clinical results thanks to the combination of the intelligent Denoise systems and the sophisticated Flow fusion technology. - Angio HD optional software – Delivers images with higher pixel density and an expanded field of view, without losing image resolution even from wide angles. And it also gives you the option to choose between square and rectangular formats up to 696 x 696 pixels.
- Retinal Expert software: protects the privacy of your patients and allows you to properly document your studies
Drawing on Canon’s renowned optical expertise, the Xephilio OCT-A1 delivers excellent image quality. With a digital resolution of up to 1.6 μm, the system enables excellent differentiation of individual retinal structures and layers. The high scanning speed of 70,000 A-scans/s allows for very short exam times, typically around two seconds, resulting in fewer motion artifacts and greater patient comfort.
FAST, EASY ACQUISITION WITH INCREDIBLE DETAIL
For outstanding performance and exceptional ease of use, you can rely on every day, look no further than Xephilio OCT-A1. Superior image quality and a host of automated features optimize and simplify your examinations, while the system’s high scanning speed enables short examination times, increasing your efficiency and your patients’ comfort.

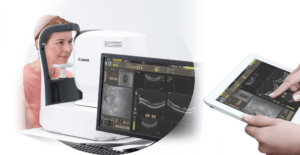

THE NEW RETINAL IMAGING REALITY
OUTSTANDING IMAGING IS YOUR BEST FRIEND

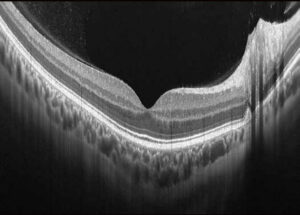

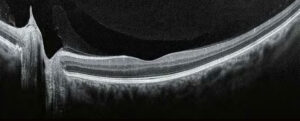

High-definition imaging
Xephilio OCT-A1 offers excellent native optical resolution. In combination with the averaging of multiple scans (up to 200), excellent image quality with amazing detail resolution can be achieved.

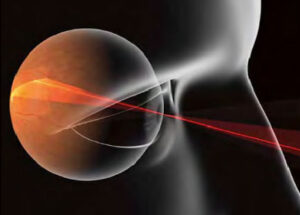

Accurate scanning, outstanding ease of use

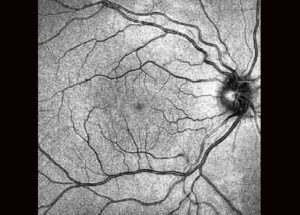

The system’s integrated Scanning Laser Ophthalmoscope (SLO) contributes significantly to scan quality and ease of use. Providing real-time retinal tracking, it enables accurate monitoring of the examination.
Fast and precise follow-up
The SLO also enables accurate follow-up examinations by automatically adjusting to the same scan position as used in the previous exam. For reliable comparison, the software automatically selects identical scan parameters.
ACHIEVE CONSISTENTLY HIGH IMAGE QUALITY, AUTOMATICALLY
At times, involuntary eye movement during examinations is unavoidable. With its integrated SLO real-time retinal tracking technology the system allows you to maintain the exact same scanning position automatically. As a result, Xephilio OCT-A1 retinal tracking greatly reduces movement artifacts and thus provides consistent, high image quality.
High definition, enhanced depth, wide field of view
With Xephilio OCT-A1, you can average up to 200 scans to achieve an image resolution that allows you to see in detail both the layer structure as well as the vitreous pleated structure. For optimal imaging, the system offers special scan modes for vitreous and choroid imaging, as well as a particularly wide scan width of up to 13 mm
Reliable 10 layer recognition
Canon’s Xephilio OCT-A1 can automatically detect and distinguish 10 layers of the retina – including Bruch’s membrane (BM) – thanks to its excellent image quality and resolution.
FAST AND EASY ACQUISITION WITH INCREDIBLE DETAIL
Examinations with the Xephilio OCT-A1 are extremely simple and therefore easy to delegate. A complete range of intelligent functions enables fully automated examinations. The auto-re-scan function intervenes if a patient makes unwanted eye movements and automatically compensates for any artefacts.
Automated anterior tracking
After pointing approximately to the center of the pupil, the system automatically detects and maintains the exact center, even when the patient is moving his eye or blinks.
Automatic image optimization
Afterward, the built-in autofocus and C-gate functions will automatically determine the highest signal quality for the best possible examination results.
Real-time retinal tracking
By detecting and compensating movements in the fundus images on a frame-by-frame basis the impact of small involuntary movements is reduced during fixation and motion artefacts are greatly reduced.
FAST, CONSISTENT EXAMS – HIGH PATIENT COMFORT
Xephilio OCT-A1 offers ten fixed and freely programmable exam presets, allowing you to combine multiple scan modes into a single exam. Using presets can help you improve the workflow and consistency of exams and, at the same time, increase patient comfort.
Versatile reporting possibilities, extensive normative databases
Xephilio OCT-A1 provides you with a full range of reporting tools, including the relevant normative databases. Thanks to its extensive DICOM and EMR capability, results from multiple Canon imaging modalities can be stored, shared and analyzed as needed in your daily practice.

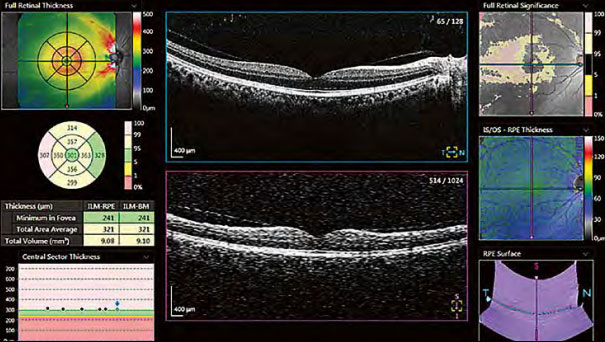

Macula
The system provides a detailed analysis of retinal thickness using comparisons with normative databases, ETDRS grids, various tables, and 3D visualizations.

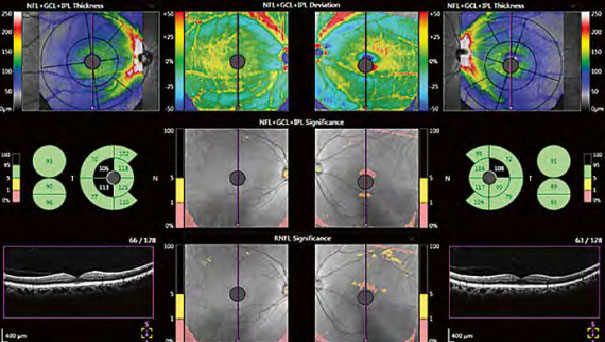

Glaucoma
Early detection is the key to slowing the progression of glaucoma. Xephilio OCT-A1 supports NFL + GCL + IPL and GCL + IPL measurements with a wide set of graphical representations for complete analysis.
COMBINED REPORT
By sharing the same database with an optional retinal camera, fundus images can be easily integrated into the OCT evaluation. Fundus and OCT images can be displayed side by side or mapped and superimposed as needed.

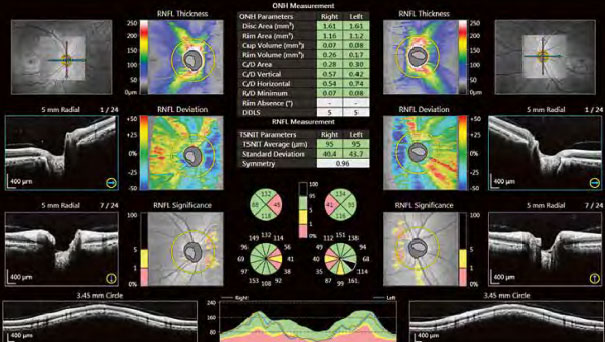

Optic Disc
Xephilio OCT-A1 allows a comprehensive analysis of all optic disc parameters, including comparisons with an extensive normative database.

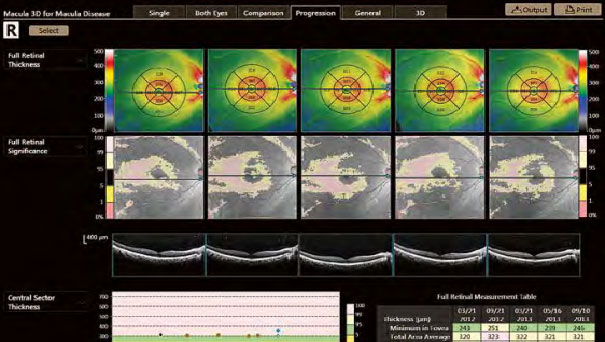

Progression report
Analysis results comparing five examinations arranged in the time sequence of eyes on the same side in the same scan mode, and the same size of the scanning area.

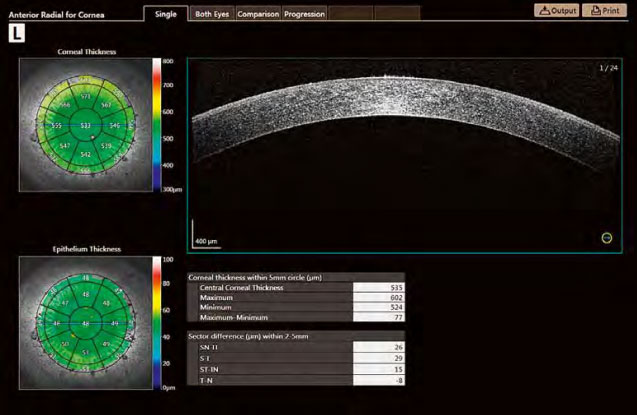

ANTERIOR SEGMENT ANALYSIS
With the optional Anterior Segment Adapter ASA-1, Xephilio OCT-A1 also gives you the ability to analyze and document the anterior segment of the eye during the same exam. The included measurement package allows you to quantify standard parameters quickly and easily.
The corneal thickness analysis on Xephilio OCT-A1 is presented as maps of corneal thickness and epithelium thickness including corneal grids, as well as a numerical table.
The anterior segment analysis kit allows you to measure the distance between two points, arbitrary angles, a well as AOD (Angle Opening distance) and TISA (Trabecular Iris Space Area) values.
Xephilio OCT-A1 Specifications
| GENERAL | |
| SCAN RATE | 70,000 A-scan per second |
| AXIAL RESOLUTION | Digital/Optical: 1.6/3.4 μm |
| TRANSVERSAL RESOLUTION | 20 μm |
| WAVE LENGTH | 855 nm ** |
| MINIMUM PUPIL DIAMETER | 3.0 mm |
| WORKING DISTANCE | 35 mm |
| FUNDUS IMAGING METHOD | Scanning Laser Ophthalmoscope (SLO) SLO Size (H x V): 13 mm x 10 mm OCT Width: 3-13 mm OCT Depth: 2.0 mm |
| INTERNAL FIXATION LIGHT | 1 mm x 1 mm or 6 mm x 6 mm |
| EXTERNAL FIXATION LIGHT | EL-1 (optional, sold separately) |
| DIMENSION and WEIGHT | OCT-A1 Device (without EL-1) Dimension (W x D x H) 387 mm x 499 mm x 474 mm Weight: 64 lb./29 kg |
| OCT SCAN PARAMETERS | |
| RETINA SCAN MODE | Vitreous and Choroidal Modes Available C-gate Direction: Normal/Inverse lmaging Position (fixation light position) Macular/Disc/Posterior |
| MACULA 3D | 1024 A-scan (H) x 128 B-scan Scanning Area: 10 mm x 10 mm |
| GLAUCOMA 3D | 1024 A-scan (V) x 128 B-scan Scanning Area: 10 mm x 10 mm |
| DISC 3D | 512 A-scan (H) x 256 B-scan Scanning Area: 6 mm x 6 mm |
| CUSTOM 3D | 1024 A-scan (H/V) x 128 B-scan Scanning Area: 3 mm to 10 mm (adjustable range) |
| MULTI CROSS | Horizontal: 1024 A-scan (H) x 5 B-scan Vertical: 1024 A-scan (V) x 5 B-scan |
| SCANNING AREA | Horizontal: 3 to 13 (adjustable range) Vertical: 3 to 10 (adjustable range) Number of Averaging: 1 (no averaging), 5, 10 |
| CROSS | Horizontal: 1024 A-scan (H) x 1 B-scan Vertical: 1024 A-scan (V) x 1 B-scan |
| SCANNING AREA | Horizontal: 3 to 13 (adjustable range) Vertical: 3 to 10 (adjustable range) Number of Averaging: 1 (no averaging), 5, 10, 20, 50 |
| RADIAL | 1024 A-scan x 12 B-scan Scanning Area: 3 to 10 mm (adjustable range) Number of Averaging: 1 (no averaging), 5, 10 |
| SOFTWARE: CANON RX CAPTURE SOFTWARE | |
| COMPUTER | CPU: Intel Core i7 (3.3GHz or more, 6 core or more) GPU Using 3D: NVIDIA Video Card (Quadro 4000 or better) memory 1GB or larger Using 3D: Full-HD, 24/32-bit color- compatible GPU Memory: Basic 6GB or larger |
| HDD | Local: 2TB or larger (RAID-1 mirroring) Remote: 100GB or larger USB Port: 4 port or more LAN: 1000Base-T or more OS: Windows 10 Pro (x64, Version1607-) English/Japanese |
| MONITOR | Display: Size: 21.5” or larger 1920 x 1080 (24 or 32 bit color) |
| FOOTNOTES | |
| * 1 (no averaging), 5, 10, 20, or 50 scans. ** Output on cornea <2.67 mW (scanning beam controlled by the laser safety system). | |
