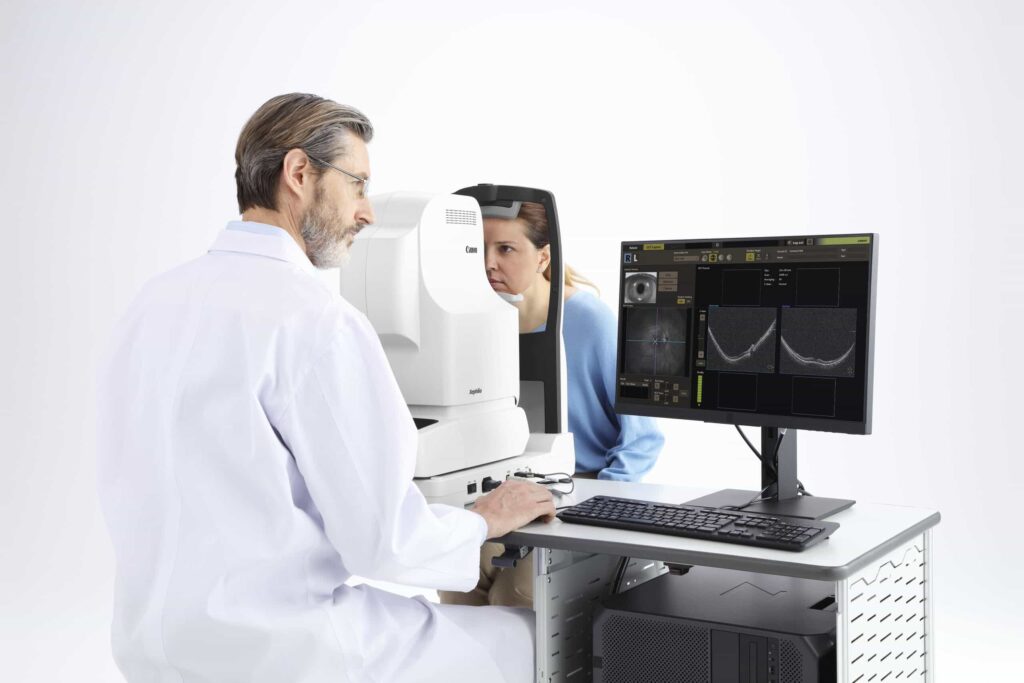

Canon Xephilio OCT-S1 Optical Coherence Tomography
Original price was: $55,999.00.$25,999.00Current price is: $25,999.00.-54% OFF
Explore the Canon Xephilio OCT-S1, a powerful OCT system that delivers ultra-high-resolution retinal imaging with advanced diagnostic capabilities for precise and efficient eye care. It is a high-performance swept-source optical coherence tomography (SS-OCT) system for advanced retinal imaging.
In stock
Description
With the Xephilio OCT-S1, Canon Medical introduces new swept-source technology. This technology lets you take up to 23 mm wide-field images in one scan.
The Xephilio OCT-S1 enables superior penetration of ocular opacities and provides outstanding tomographic images. See better OCT images in one scan. Enjoy less noise, more detail, and clearer visibility in just seconds.
Swept-source technology enables a fast scanning speed of 100,000 A-scans each second. It also maximizes the important signal data collected during the process. The 1,060 nm wavelength creates invisible scan lines, which helps patients cooperate better and makes the exam easier.
Canon has introduced the Xephilio OCT-S1. This new technology uses swept source to take wide-field retina images. It can capture up to 23 mm in a single scan.
Xephilio OCT-S1 enables superior penetration of dense objects and provides outstanding tomographic images. The system uses Deep Learning AI technology called Intelligent Denoise. It provides better-quality OCTA images in one scan. This technology reduces noise, increases details, and improves visibility in seconds.
Key Features:
- Wide-Field Imaging:
Can capture wide-field OCTA and OCT images, allowing for a broader retina view.
- Deep Penetration:
Swept-source technology helps us see deeper into the retina and choroid, allowing us to visualize structures like the choroid and even the sclera.
- High-speed Scanning:
A-scans at 100,000 per second, enabling faster acquisition and higher resolution images.
- AI-powered Image Processing:
AI Intelligent Denoise and Angio Expert improve image quality and enable more detailed visualization of the retinal microvasculature.
- Mosaic Imaging:
Combines multiple scans to create a larger mosaic image.
Allows for detailed visualization of retinal blood vessels in 2D and 3D.
- SLO Integration:
Features a built-in SLO for real-time retinal tracking and accurate follow-ups.
- Intuitive Interface:
The software is easy to use, with clear graphic representations of functions and previous studies.
OUTSTANDING IMAGING IS YOUR BEST FRIEND
Canon’s recognized optical expertise enables the Xephilio OCT-S1 to offer superb image quality with minimal scatter. The swept source technology allows for better penetration into deeper tissue structures like the choroid and sclera.
Imaging depths of up to 5.3 mm allow for clear views of the vitreous body and choroid in one scan. The fast scanning speed of 100,000 A-scans per second reduces examination time and gives exceptionally high-resolution scans.

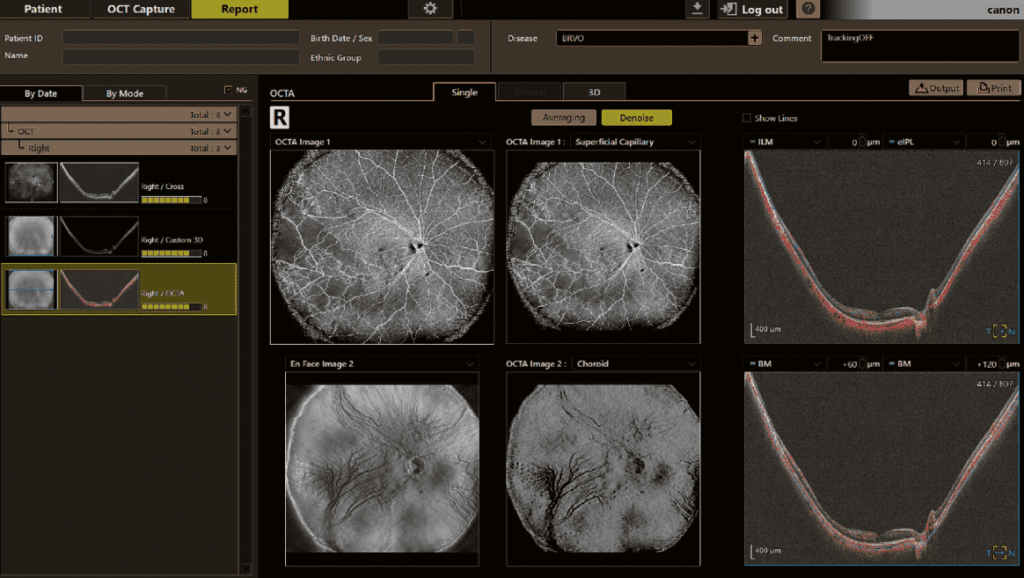

VERSATILE REPORTING POSSIBILITIES
Xephilio OCT-S1 provides a comprehensive range of reporting tools. Thanks to its extensive DICOM and EMR capability, results can be stored, shared, and analyzed as needed in your daily practice.
OUTSTANDING IMAGING.
Specifications
| Scan Speed | Max. 100,000 A scan/second |
| Horizontal Resolution | 30μm |
| Axial Resolution | 8μm |
| Light Source Wavelength | OCT: 1060nm, SLO: 780nm |
| Small Pupil Size | Φ3.0mm |
| Working Distance | 20mm |
| Retina Observation Method | Flying spot SLO |
| SLO FOV (H x V) | 23mm x 20mm |
| OCT Scan Width | 3~23mm |
| OCT Scan Depth | 5.3mm |
| Internal Fixation | “x” shape display on retina: green |
| External Fixation Light | EL-1 (option) |
| Dimension and Weight | |
| Dimension (W x D x H) | 510mm x 330mm x 590mm |
| Weight | 35kg (main unit only) |
| OCT Scan Parameters | |
| Retina scan mode | |
| Custom 3D | 512 x 512 1024 x 128 1024 x 1024 2048 x 512 Vertical/Horizontal |
| Multi-cross | 1024 x 1024 2048 x 2048 4096 x 4096 Averaging: 1–50 |
| Cross | 1024 x 1024 2048 x 2048 4096 x 4096 Averaging: 1–200 |
| Radial | 1024 2048 4096 12 directions (15 degree intervals) Averaging: 1–50 |
| OCTA | Small: 232 x 232 (3 x 3 ~ 8 x 8mm) Medium: 464 x 464 (4 x 4 ~20 x 20mm) Large: 696 x 696 (6 x 6 ~ 20 x 20) Super Large: 928 x 807 (23 x 20mm) |
Optical power on cornea < 2.0mW for OCT, 1.0mW for SLO (scanning beam controlled by the laser safety system)
