NIDEK RS-3000 Lite Optical Coherence Tomography (OCT)

Original price was: $12,999.00.Current price is: $4,999.00.-62% OFF

The NIDEK RS-3000 Lite Optical Coherence Tomography (OCT) is a clinic-ready imaging system designed for efficient, high-quality evaluation of the retina and optic nerve. It supports detailed assessment for glaucoma management, macular and retinal disease monitoring, and routine diagnostic imaging where speed and consistency matter.

In stock

RS-3000 Lite Category: Tag:
SHARE

Description

The RS-3000 Lite from Nidek is an optical coherence tomography (OCT) device designed for routine ophthalmic examinations. It offers high-resolution OCT imaging and essential clinical analyses, while maintaining excellent value for money for general eye care practices.
The RS-3000 Lite achieves the optimal balance between cost and performance with its fundus-surface imaging system. It has been developed for screening in general eye clinics.

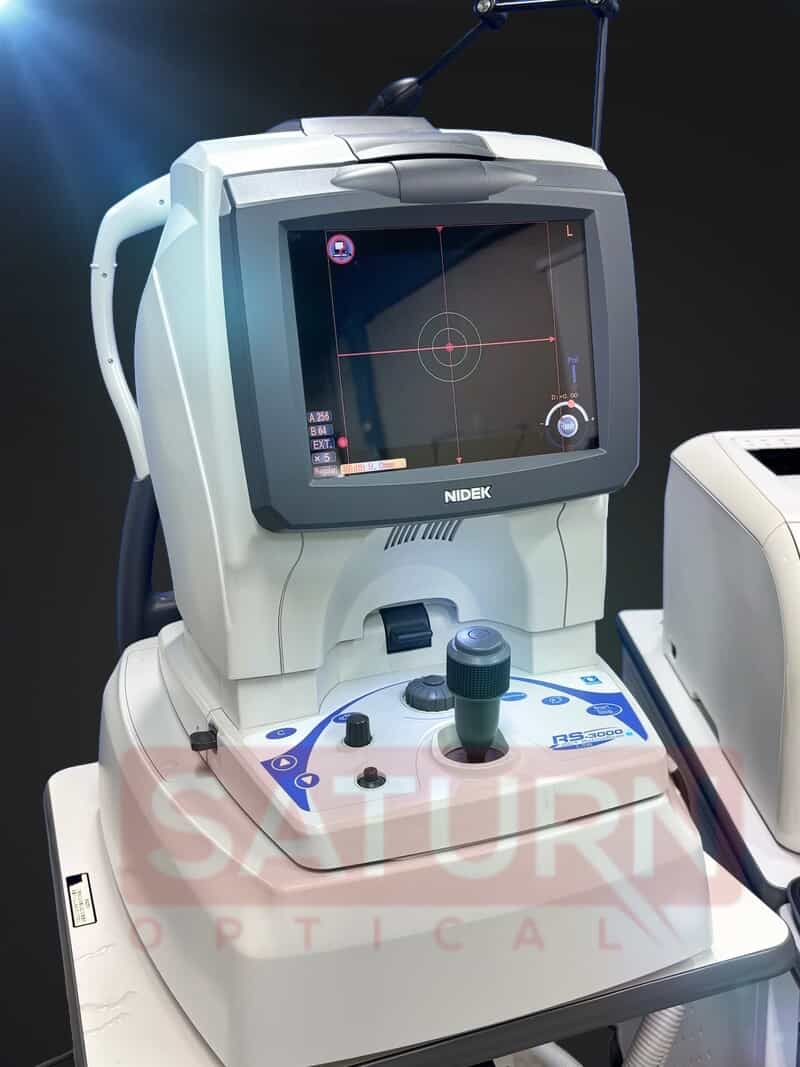

Its compact design, tiltable color LCD screen, and PC connectivity make it a practical tool adaptable to any clinical environment. In addition, optional modules such as anterior segment analysis or a database for eyes with long axial length can be added to enhance diagnostic capabilities.

The RS-3000 Lite is a reliable, accurate, and cost-effective OCT solution, ideal for eye care professionals who want to offer high-quality examinations without compromise.





Features

  • High-resolution OCT imaging for general screening
  • Fundus surface imaging with fundus phase OCT

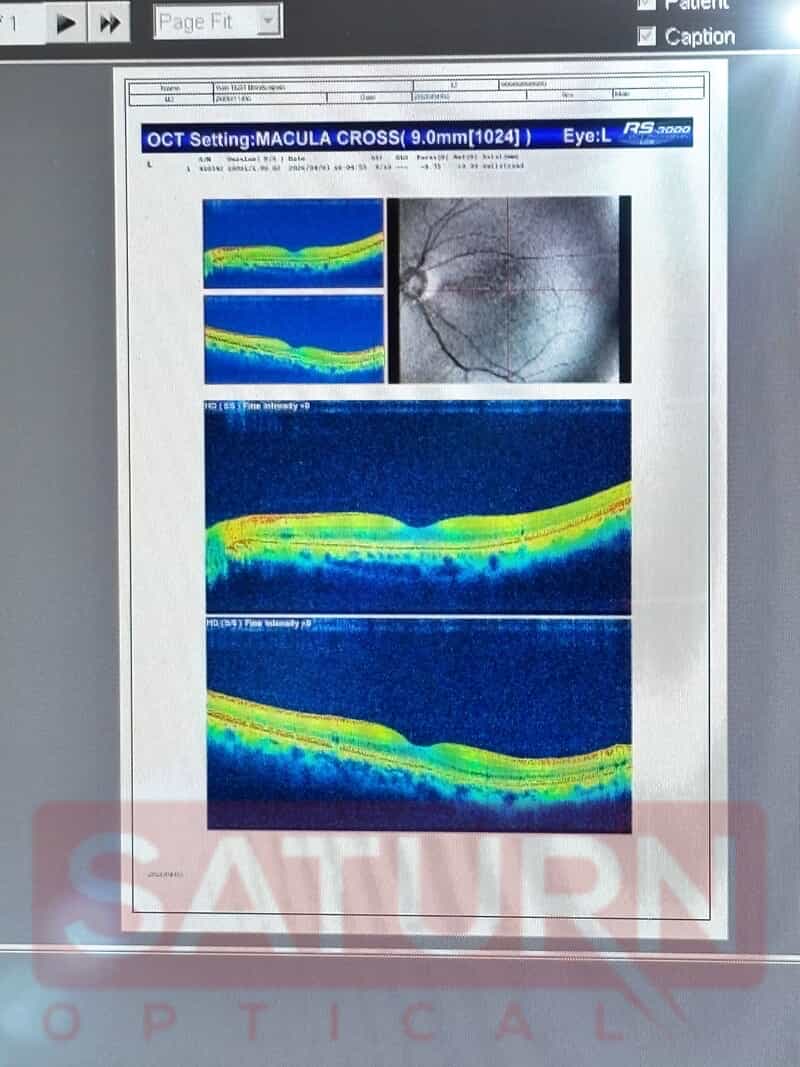

  • Macular and optic nerve thickness analysis
  • Thickness maps [NFL+GCL+IPL] and RNFL
  • Normative database for clinical comparison
  • OCT sensitivity adjustable according to clinical needs
  • Intuitive user interface with colour display

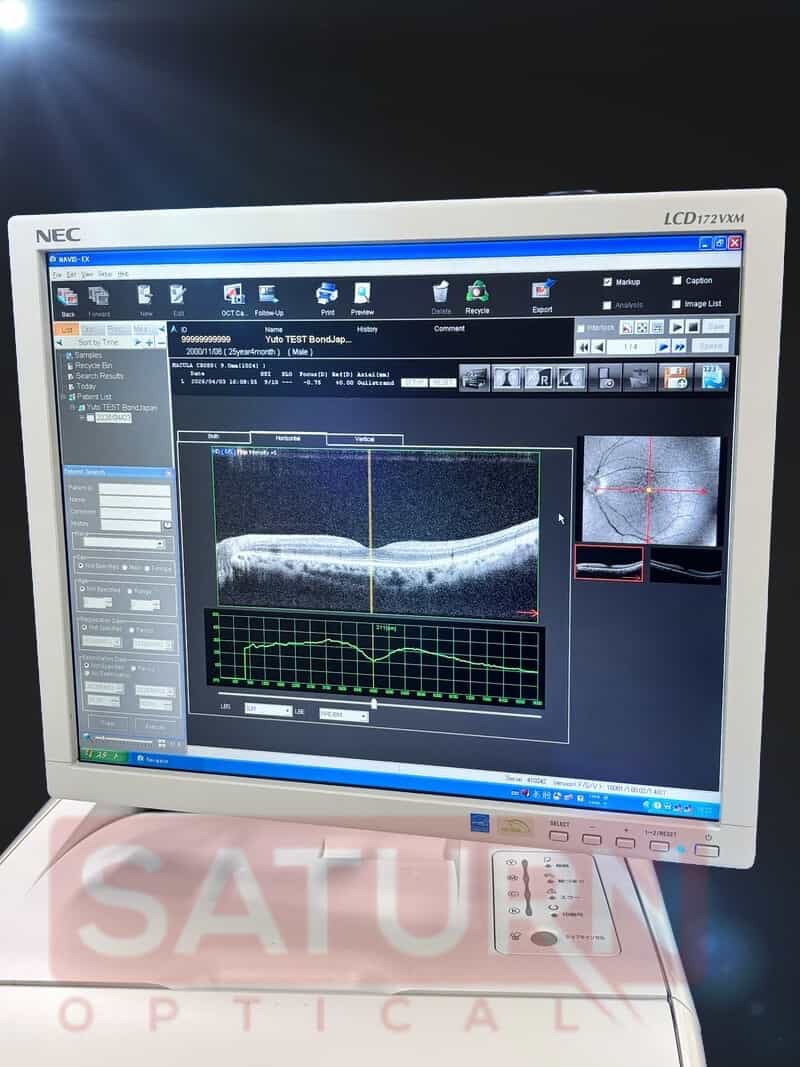

  • PC connectivity for archiving and analysis

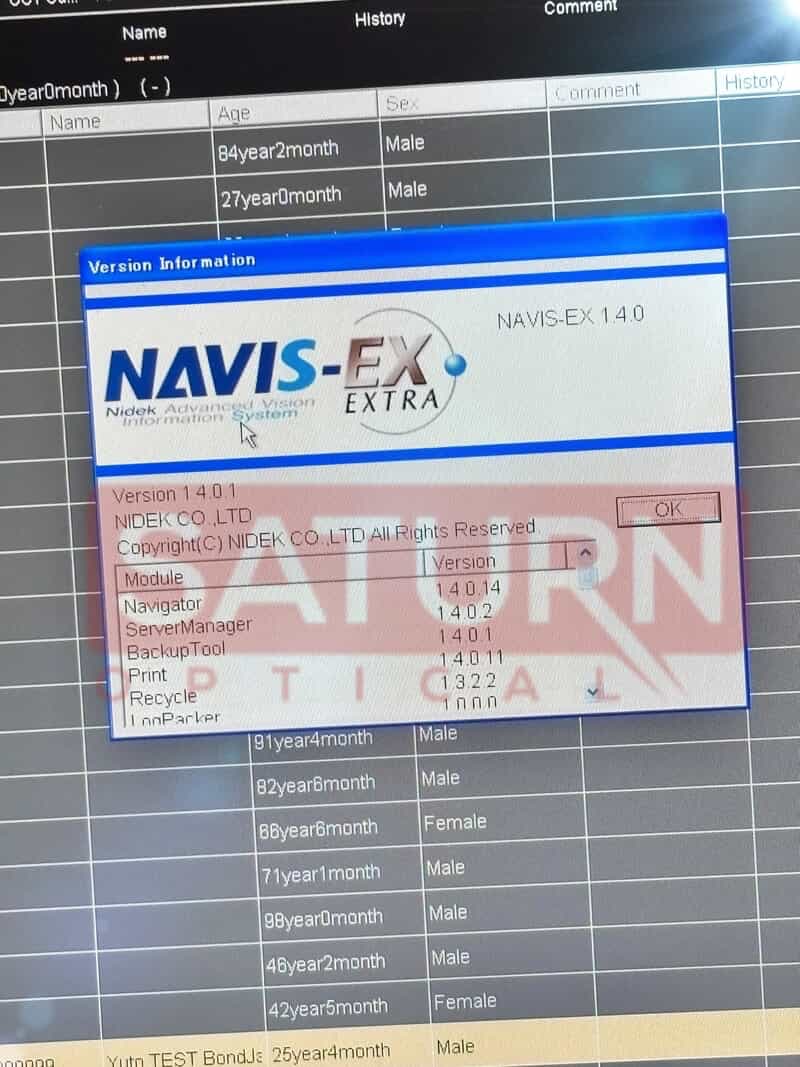

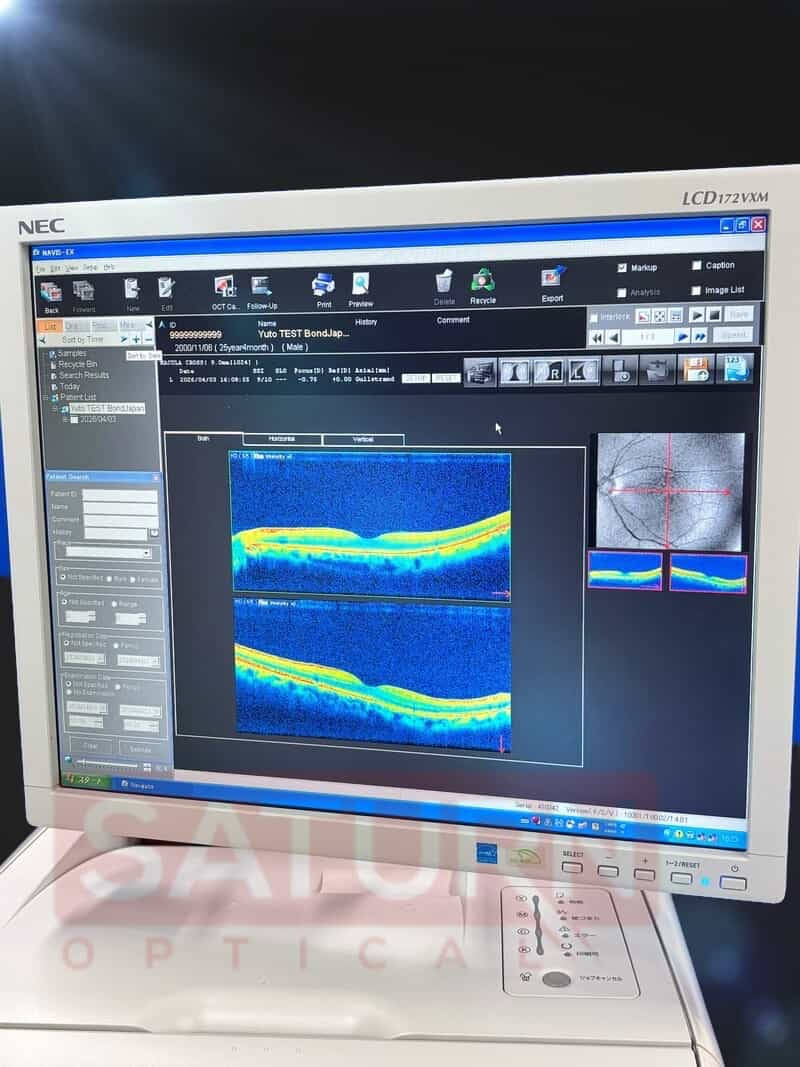

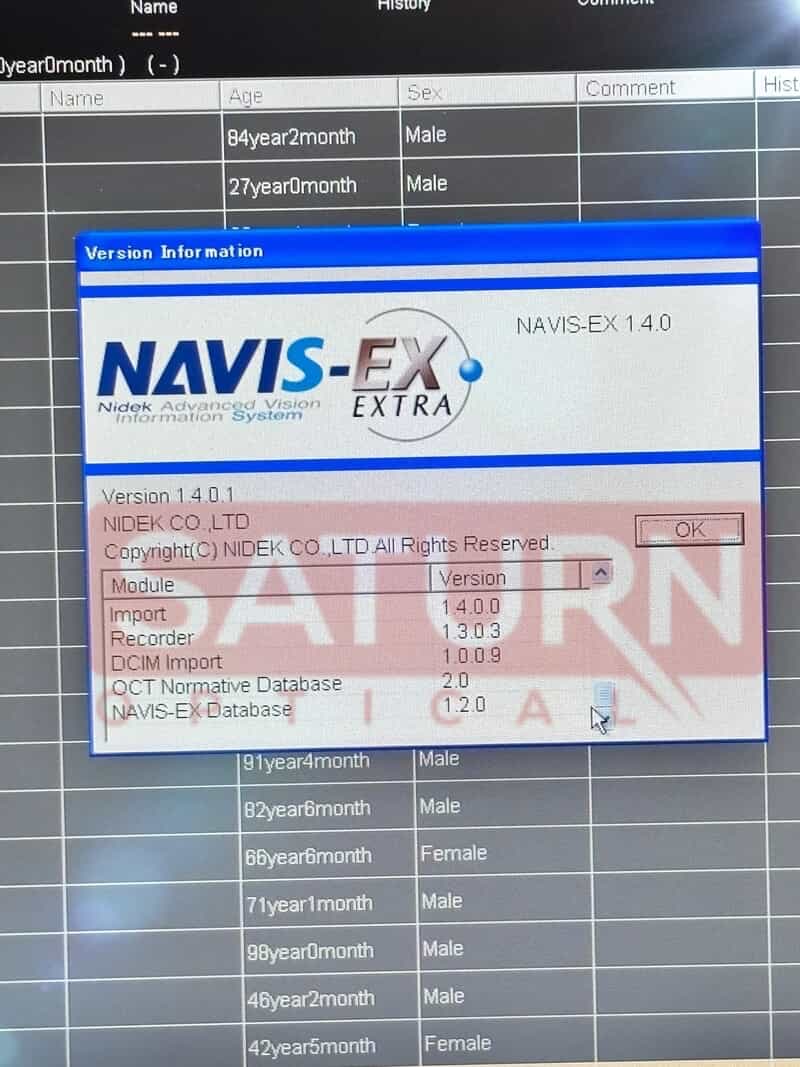

  • Compatible with the NAVIS-EX software for data management

The RS-3000 Lite offers several OCT sensitivity modes (regular and fine), allowing adaptation to different eye conditions, particularly in the presence of cataracts or opacities. It also includes an extensive normative database (9 x 9 mm macula and 6 x 6 mm disc), facilitating comparative analysis of retinal thickness and optic nerve thickness.

Although certain features, such as choroidal mode, eye twist tracking (TET), and HD tracing mode, are reserved for the Advance model, the RS-3000 Lite retains the essential features for screening for conditions such as age-related macular degeneration (AMD), glaucoma, and diabetic retinopathy.

Technical Details

  • OCT scanning principle: Spectral domain OCT
  • Optical resolution: Z: 4 µm, X-Y: 3 µm
  • Scanning range: X: 3 to 9 mm / Y: 3 to 9 mm / Z: 2.1 mm
  • OCT light source: SLD, 880 nm
  • Scanning speed: Up to 53,000 A-scans/s
  • Fundus phase OCT viewing angle: 36° x 30°
  • OCT sensitivity: Standard, Fine
  • Normative database: Macula 9 x 9 mm / Disc 6 x 6 mm
  • Minimum pupil diameter: 2.5 mm
  • Focus adjustment: -15 to +10 D (VD = 12 mm)
  • Working distance: 35.5 mm
  • Screen: 8.4-inch tiltable colour LCD
  • Power supply: AC 100, 120, 230 V / 50-60 Hz
  • Power consumption: 300 VA
  • Dimensions: 380 x 524 x 499–531 mm
  • Weight: 33 kg

Compatible Accessories

  • Motorized optical table

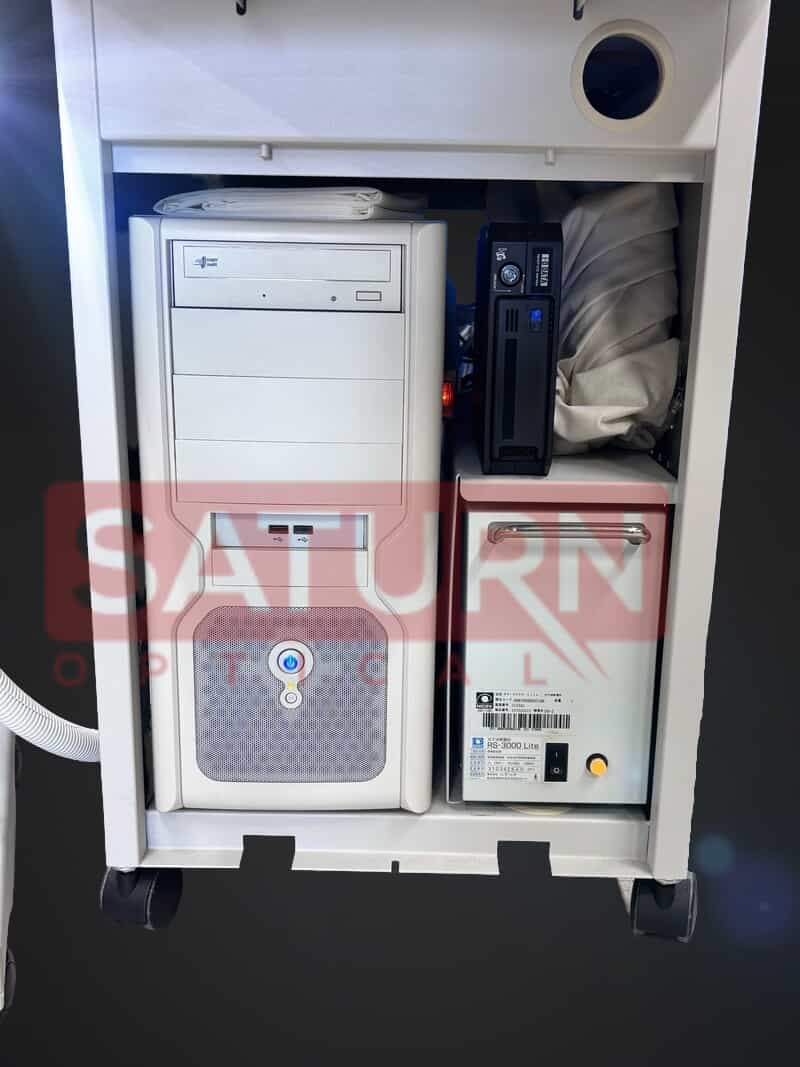

  • PC rack
  • Normative database for long axial length
  • NAVIS-EX Viewer software
  • Internal LED fixation

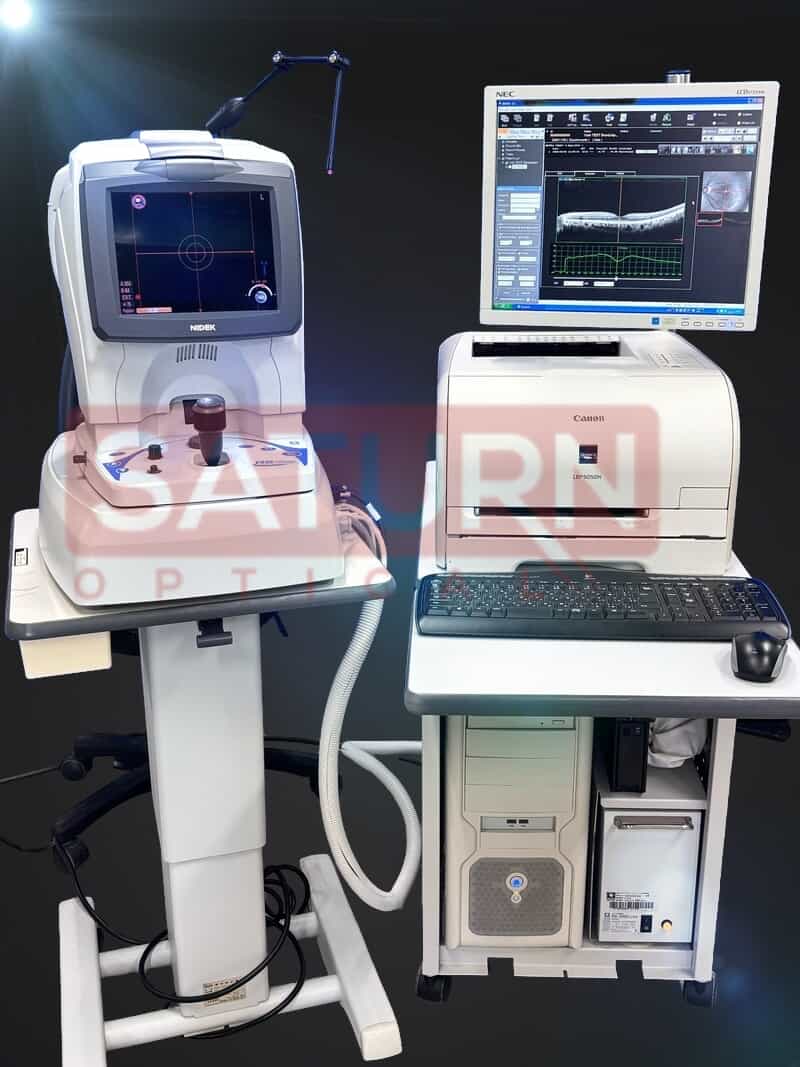

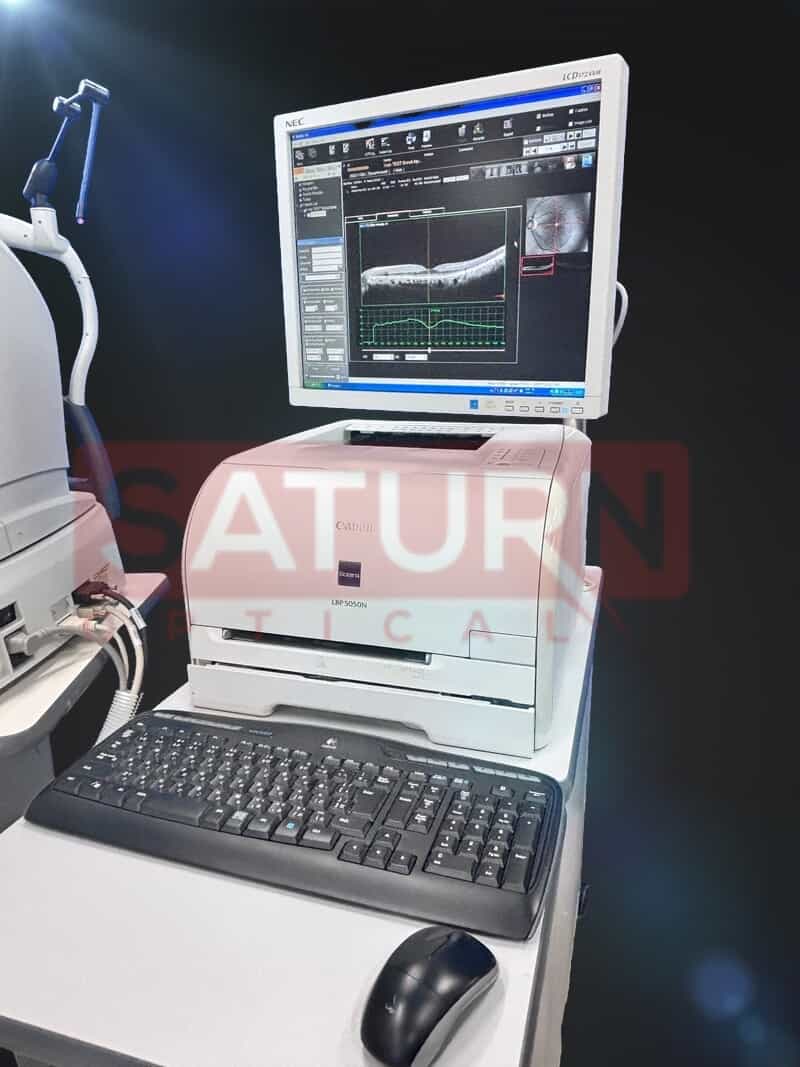

Included in the set:

  • Power cord,
  • New DELL wireless keyboard,
  • New DELL wireless mouse,
  • NEC EA223WM-BK monitor,
  • HP DESKJET D5560 printer,
  • STRATUS OCT electric table,
  • Transformer for power supply,
